4200*6900mm Rectangular pipe jacking machine

Name: 42006900mm Rectangular pipe jacking machine
Brand: tangxing
Price: 1 USD

Quality 4200*6900mm Rectangular pipe jacking machine for sale

Brand Name : tangxing

Model Number : 4200*6900mm

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1set

Payment Terms : T/T

Supply Ability : 300sets per year

Delivery Time : one month

Packaging Details : in bulk

Contact Now

4200*6900mm Rectangular pipe jacking machine

We are pipe jacking machine manufacture from China, and we can produce more than 300 sets of
pipe jacking machine per year, which covers the Dia. range from 500mm to 4000mm, and rectangular pipe
jacking machine also.

Please feel free to contact me Alice Cai 0086-18752825001 alicemachine at foxmail.com

Wechat: 18752825001 or caiqixia88

Features:

●Full section cutting
●Keeping earth pressure balance, low construction disturbance to surrounding soil..
●High space utilization rate, fewer construction area..

Technical Parameters:

Dimensions	Pipe Jacking Machine OD	4200*6900mm
	Length	6000mm
Cutter Head	Cutter Head Motor Power	376,302*4KW
	Revolution Speed	1.35,2.6
	Torque	222,240KW
Steering System	Cylinder No.	16
	Thrust	200
	Max. Steering Angle	up&down2.38 left&right1.36
	Pump Station Max. Pressure	31.5MPA
	Cylinder Stroke	350
	Pump Station Motor Power	15KW
Screw Conveyor	Diameter	400mm
	Motor Power	60KW
	Speed	15.3R/MIN
Total Weight		68T
Total Power		537
Control	Remote PLC Control(Touch Screen)
Soil	Normal soil, sand, clay

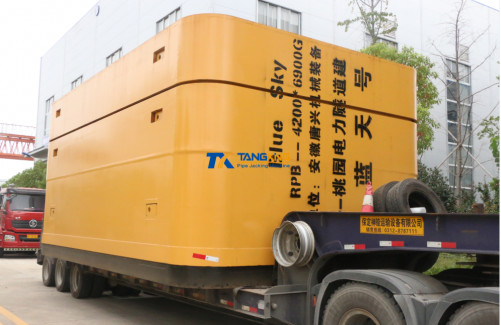

4200*6900mm Rectangular pipe jacking machine
